Hydrogen Proportional Valve
YJPV02432001
YJPV02425001Max. Flow Rate*: 8g/s @16barASend Email Details
Small hysteresis (<4%)
Good linearity
Working pressure: 0~20barG
Maximum sealing pressure: 25barG
Leakage <3PPM (hydrogen medium)
Operating Frequency: 200~1000HZ, recommended Operating Frequency 500HZ
Flow Rate (mm): 2.5, 3.2 (can be customized)
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18 -
Hydrogen Injector
YJPI12414501
Send Email Details
Stable operation in hydrogen dry friction environment
Working pressure: 0~30barG@24V voltage platform (18~32VDC range)
0~10barG@12V voltage platform (8~16VDC range)
B₁₀Lifespan:>1 billion times
Leakage: <3PPM (hydrogen medium)
Mode control: PEAK-HOLD (PEAK current 2A, HOLD current 0.5A)
Operating Frequency: 10~30HZ, can maintain normal operation
Circulation aperture: 0.1mm~2.5mm can be customized
Working noise:<65dB
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18 -

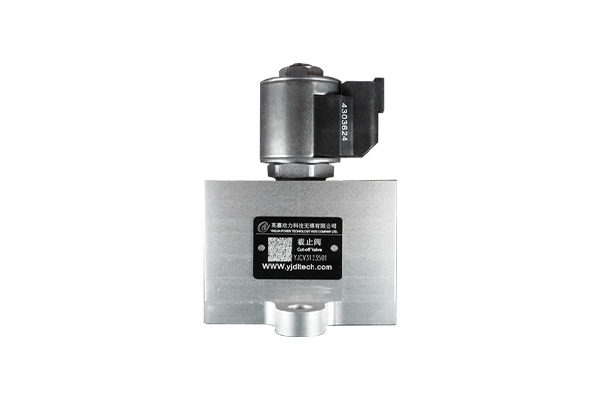

Hydrogen Cut-Off Valve
YJCV11245201
Send Email Details
Working pressure: 0~350barG
Operational Voltage: 12 or 24V
Leakage <3PPM (hydrogen medium)
Small pressure loss (<0.5bar)
Control mode: Normally powered on
Pilot solenoid valve, opening response time: <200ms
Flow aperture: customized according to needs
Batch flow hole diameter (mm) 3.5, 5.2, 9
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18 -
Hydrogen Safety Valve
YJLV0722001
YJLV0720001The control precision is high, and the opening pressure and reseating pressure are controlled stably.Send Email Details
Large flow rate, fast pressure relief response, and effective protection of the stack.
It has good sealing performance and can achieve steady zero leakage in a hydrogen environment.
The interface form and size can be designed according to customer needs.
