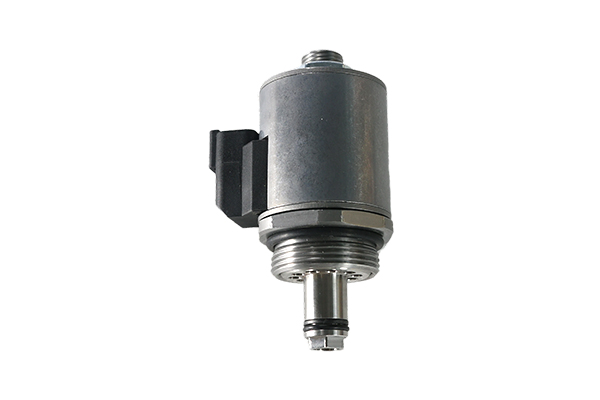

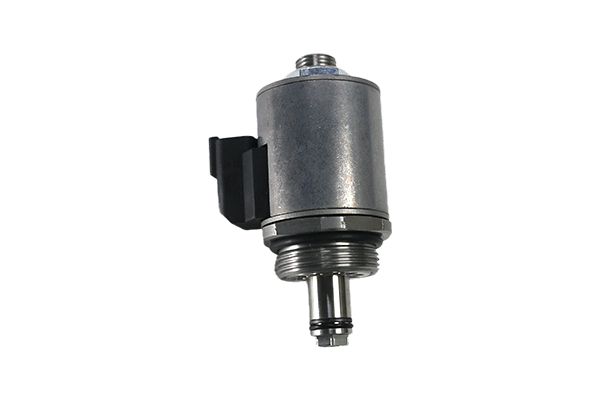

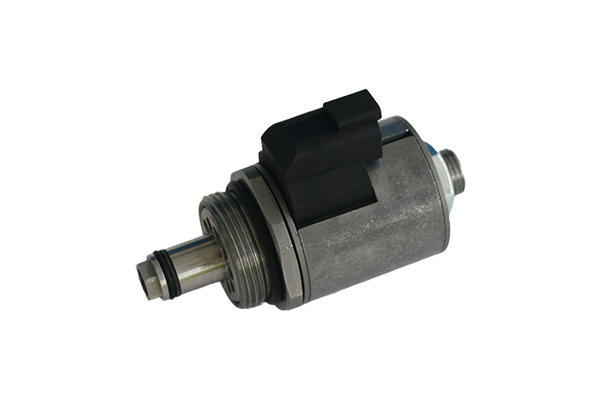

Hydrogen Cut-Off Valve

YJCV11245201
Working pressure: 0~350barG
Operational Voltage: 12 or 24V
Leakage <3PPM (hydrogen medium)

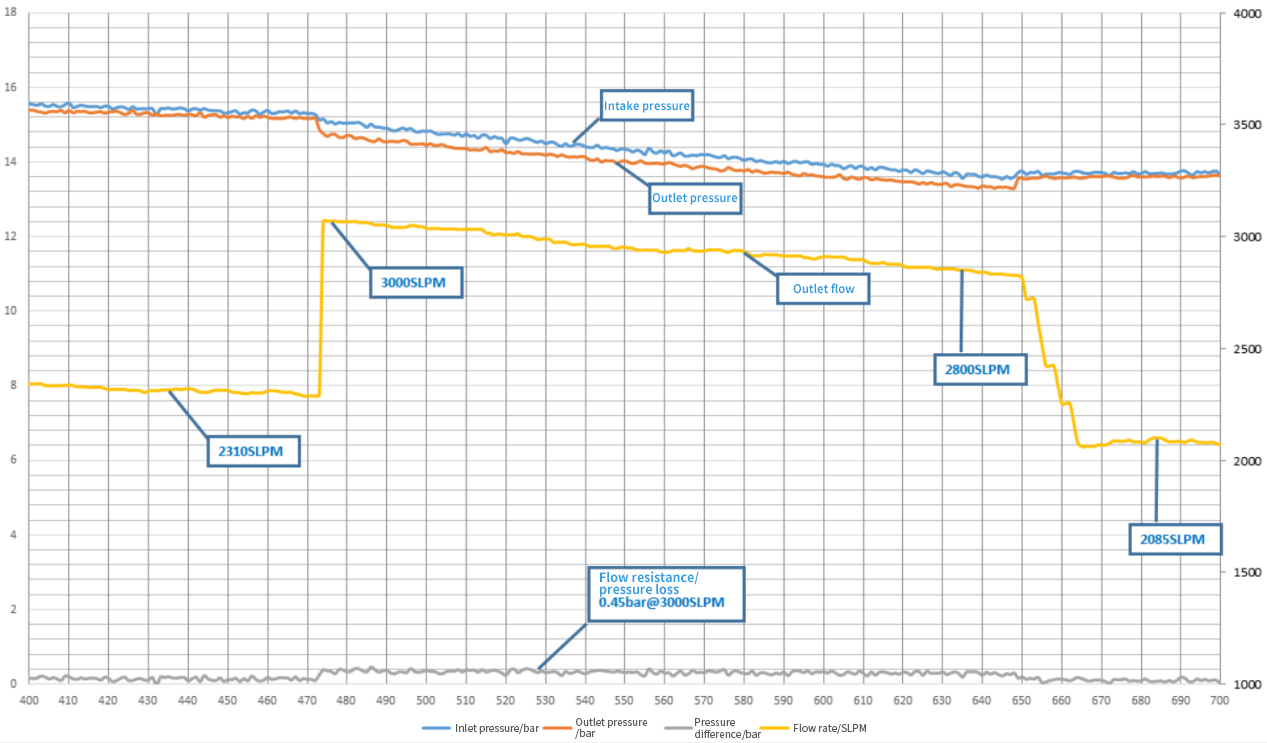

Small pressure loss (<0.5bar)
Control mode: Normally powered on
Pilot solenoid valve, opening response time: <200ms
Flow aperture: customized according to needs
Batch flow hole diameter (mm) 3.5, 5.2, 9
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18
