YJPV02432001
YJPV02425001
Max. Flow Rate*: 8g/s @16barA

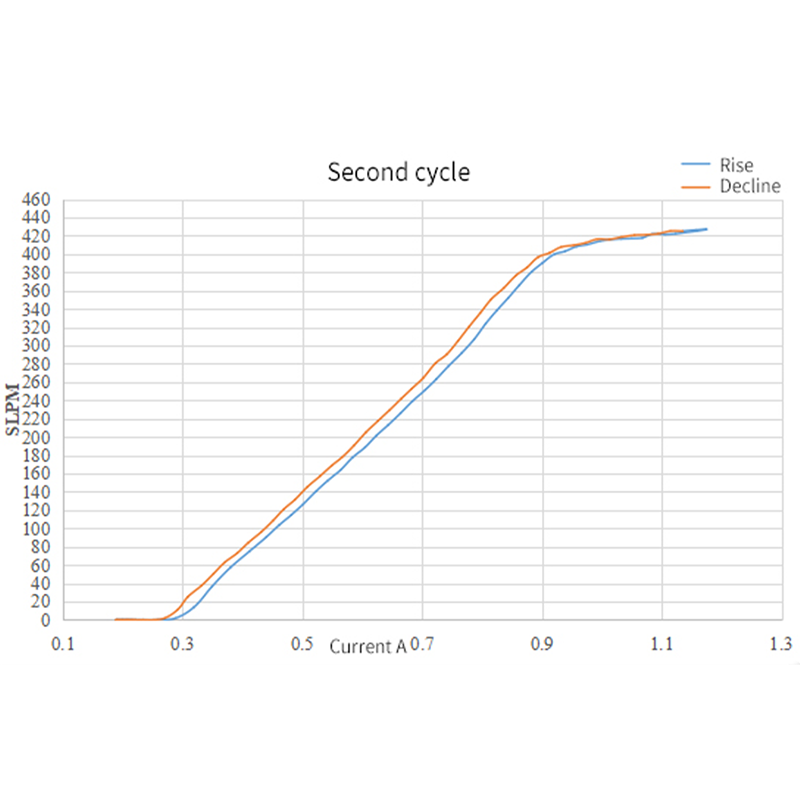

Small hysteresis (<4%)
Good linearity
Working pressure: 0~20barG
Maximum sealing pressure: 25barG
Leakage <3PPM (hydrogen medium)
Operating Frequency: 200~1000HZ, recommended Operating Frequency 500HZ
Flow Rate (mm): 2.5, 3.2 (can be customized)
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18
