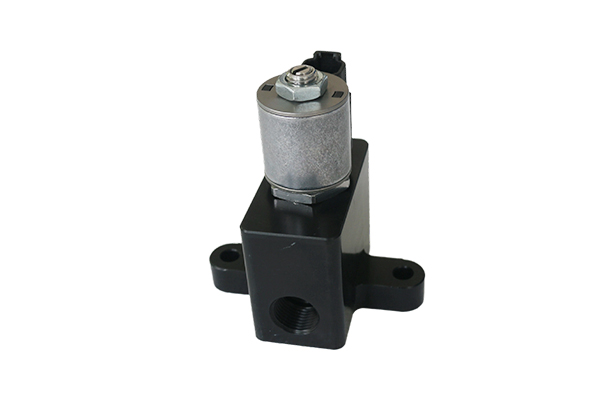

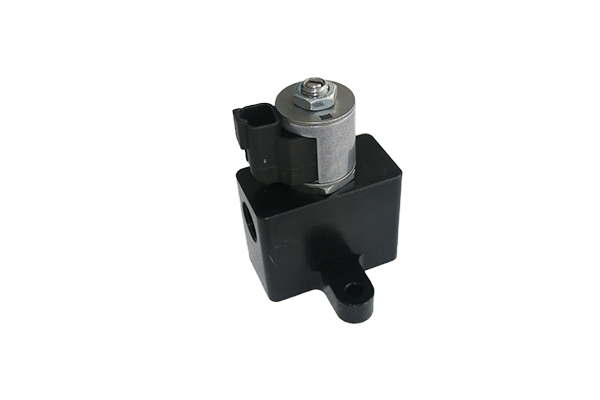

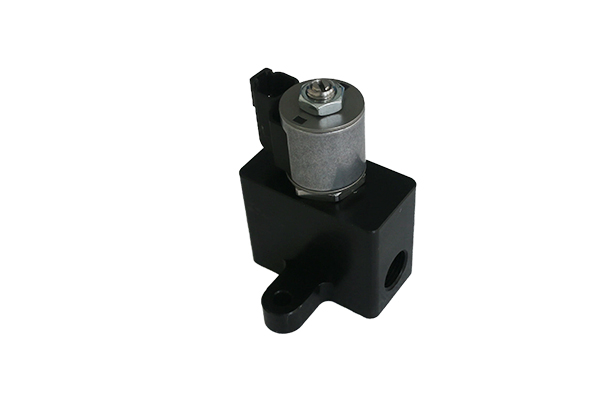

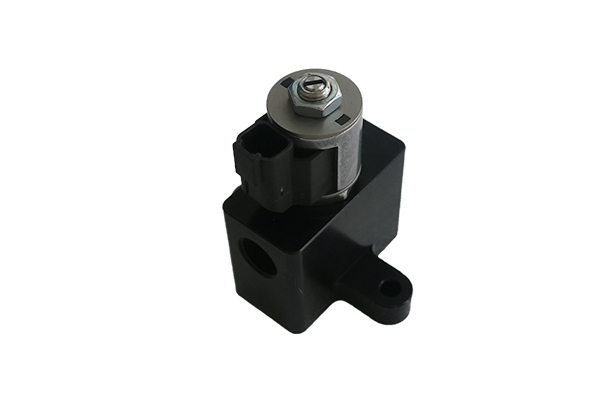

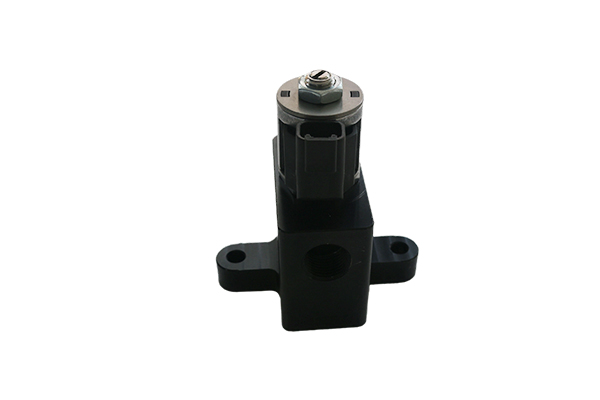

Hydrogen Injector
YJPI12414501
Stable operation in hydrogen dry friction environment
Working pressure: 0~30barG@24V voltage platform (18~32VDC range)
0~10barG@12V voltage platform (8~16VDC range)
B₁₀Lifespan:>1 billion times
Leakage: <3PPM (hydrogen medium)
Mode control: PEAK-HOLD (PEAK current 2A, HOLD current 0.5A)
Operating Frequency: 10~30HZ, can maintain normal operation
Circulation aperture: 0.1mm~2.5mm can be customized
Working noise:<65dB
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18
