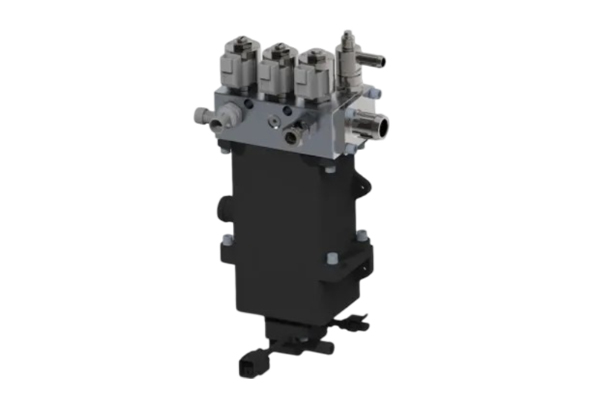

Integrated Hydrogen Circulation System
The hydrogen supply system is a key component of the fuel cell engine. It is responsible for providing a constant flow and pressure of hydrogen to the engine and managing the water balance inside the fuel cell stack.
Send Email Details
In the actual operation of the fuel cell system, the hydrogen on the anode side always remains in excess, while the water molecules generated on the cathode side continue to penetrate toward the anode side. In practical applications, it has been found that the direct emission of hydrogen not only causes a waste of resources, but may also cause safety issues. Repeated circulation of hydrogen may lead to the accumulation of impurities and reduce the purity of hydrogen. On the other hand, the water content on the anode side has a significant impact on the performance and life of the fuel cell: too low a water content may cause the proton exchange membrane to dry out, affecting the proton transmission efficiency, while too high a water content may hinder the flow of hydrogen at the anode. Spread, causing flooding, resulting in local insufficient hydrogen supply. Therefore, circulation of excess hydrogen and water management on the anode side are critical to fuel cell performance.
Our company's latest integrated hydrogen circulation system integrates hydrogen injection/proportional valve, ejector, stop valve, pressure limiting valve, water separator, and drainage valve. It has a wide range of adaptable power, stable hydrogen supply, and efficient hydrogen utilization. It has the advantages of high efficiency, high water separation efficiency, small size, light weight, and high integration, which can perfectly solve the problem of stable hydrogen supply and water balance in the engine. Since the product was launched, it has attracted the attention of many customers at home and abroad. -

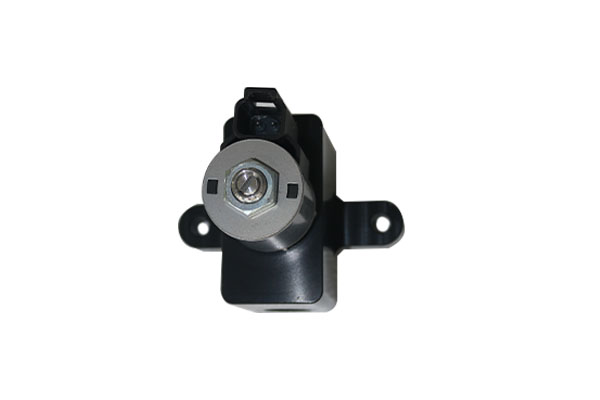

Hydrogen Proportional Valve
YJPV02432001
YJPV02425001Max. Flow Rate*: 8g/s @16barASend Email Details
Small hysteresis (<4%)
Good linearity
Working pressure: 0~20barG
Maximum sealing pressure: 25barG
Leakage <3PPM (hydrogen medium)
Operating Frequency: 200~1000HZ, recommended Operating Frequency 500HZ
Flow Rate (mm): 2.5, 3.2 (can be customized)
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18 -

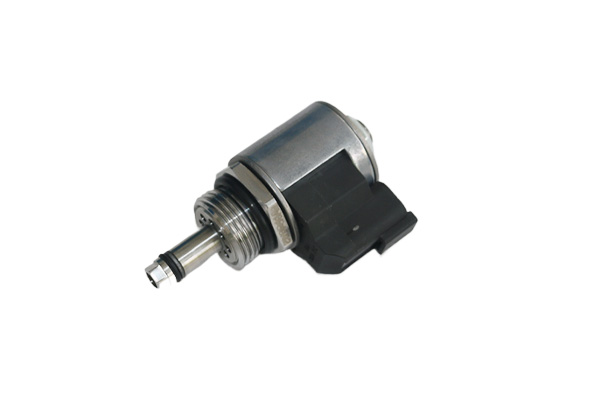

Hydrogen Injector
YJPI12414501
Send Email Details
Stable operation in hydrogen dry friction environment
Working pressure: 0~30barG@24V voltage platform (18~32VDC range)
0~10barG@12V voltage platform (8~16VDC range)
B₁₀Lifespan:>1 billion times
Leakage: <3PPM (hydrogen medium)
Mode control: PEAK-HOLD (PEAK current 2A, HOLD current 0.5A)
Operating Frequency: 10~30HZ, can maintain normal operation
Circulation aperture: 0.1mm~2.5mm can be customized
Working noise:<65dB
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18 -

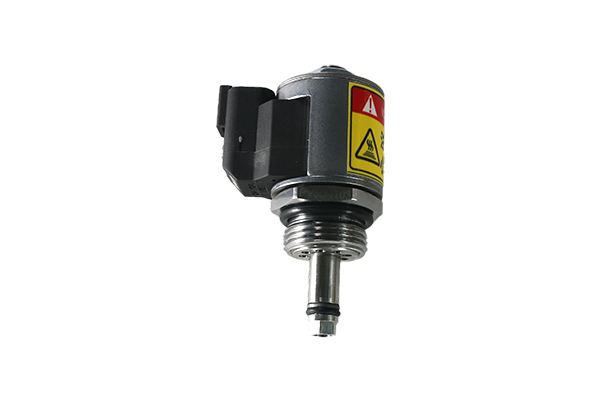

Hydrogen Cut-Off Valve
YJCV11245201
Send Email Details
Working pressure: 0~350barG
Operational Voltage: 12 or 24V
Leakage <3PPM (hydrogen medium)
Small pressure loss (<0.5bar)
Control mode: Normally powered on
Pilot solenoid valve, opening response time: <200ms
Flow aperture: customized according to needs
Batch flow hole diameter (mm) 3.5, 5.2, 9
IP Grade: IP68
Connector model: DT06-2S
Wiring harness model: AWG18 -

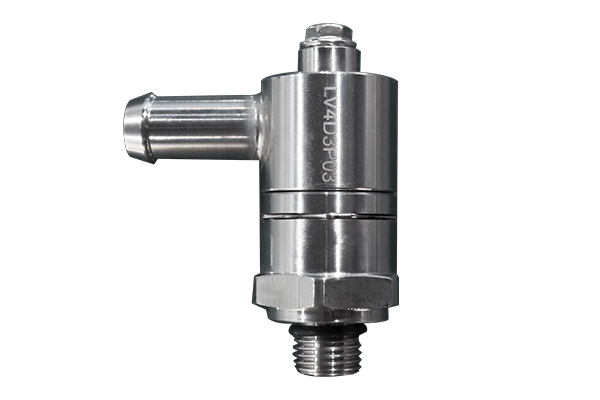

Hydrogen Safety Valve
YJLV0722001
YJLV0720001The control precision is high, and the opening pressure and reseating pressure are controlled stably.Send Email Details
Large flow rate, fast pressure relief response, and effective protection of the stack.
It has good sealing performance and can achieve steady zero leakage in a hydrogen environment.
The interface form and size can be designed according to customer needs.
