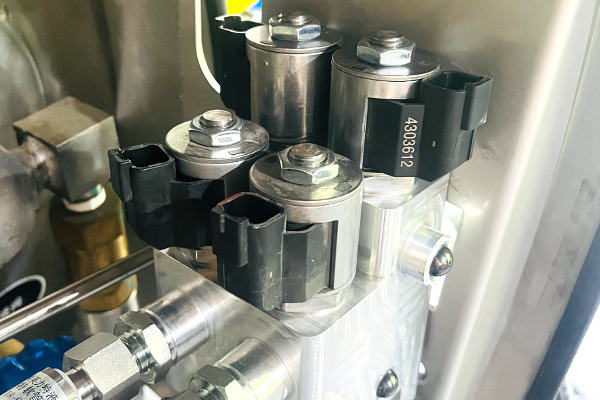

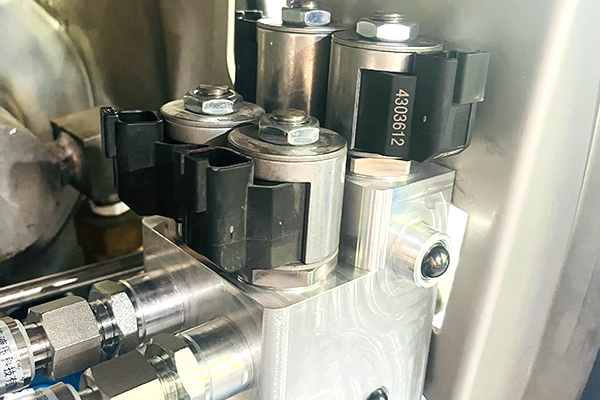

Directional Valve
YJRV1042401
Working medium: hydraulic oil
Operational Voltage 18~32VDC
Working pressure 10MPa~30MPa
The four inlet and outlet ports of the reversing valve, P, T, A, and B, P→T, P→A, P→B, A→T, and B→T can be controlled independently.
When power output is not needed, maintaining P→T, A→B can greatly reduce the energy consumption of the hydraulic pump.
Integrated pressure sensor
Integrated safety valve
